Function

1. 100BASE-Tx, 100Mbps Cobranet full-duplex real-time audio transmission network

2. Uncompressed CD sound quality, up to 48K/96K, 24BIT

3. SNMP network, bi-directional control, monitoring and management

4. TFTP network software upgrade

5. DSP real-time audio signal adjust: Parametric EQ (adjustable Q value), compressor, limiter, noise gate, filter, electronic filtering, mixing sound, dual matrix management;

6. Flexible input and output channel configuration: 8 × 8, 2 × 8, 8 IN, 8 OUT, 4 × 4, 2 × 4,4 × 2, etc.

7. Compatible LINE IN input and microphone input, microphone phantom output

8. Phoenix head balanced input and output interfaces

9. Support 485 network transmission

10.Dual-network interface design, network redundancy backup in the equipment

11. LINK clock input and output, redundancy between devices, ensure perfectly safe audio transmission control

12. Output level real-time LED light instructions

Feature

1. Simple Connection. Just connect two U88 pocessors via the CAT5 with audio network, audio signal transmission and processing can be realized.

2.Easy operation. Use a simple graphical operating software to control U88 processor and preset one processing mode stored in a memory chip, convenient to use.

3. Powerful audio processing. RS1600 software offers varieties of virtual digital audio processing equipment,and it can entirety replace a large number of professional audio processing equipment.

U88 TECHNICAL SPECIFICATION

Frequency Response: 20Hz~20KHz +/-0.3dB

THD & Noise: less than 0.005% +4dBu

Dynamic Range: 100dB

Maximum Input Level: +21dBu

Maximum Output Level: +21dBu

Input Impedance: 10K ohms

Output Impedance: 100K ohms

Sampling Rate: 48KHz

AD/DA Digitalizing Bit: 24bit

Maximum Audio Process Channel Number: 8 channels input, 8 channels output

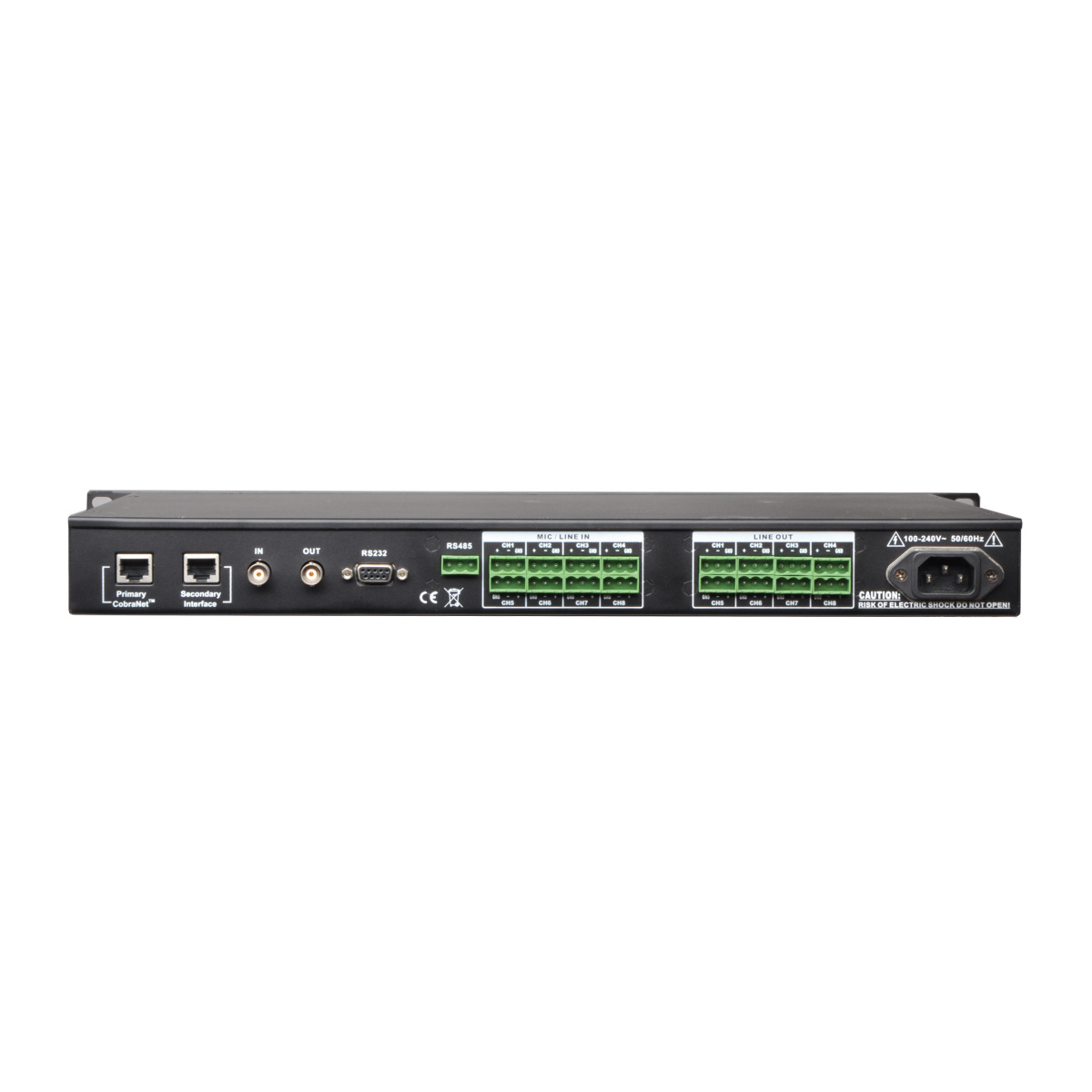

Interface: two RJ45 Cobranet network interfaces, one RS485 controlling interface, two redundancy backup interfaces between devices.

Power Supply: 100-240V AC Frequency: 50/60Hz

Power: low than 30W

Net Weight: 4.6kg

gross weight: 6kg

Device Dimension(L×W×H): 483×315×45MM

Packing Dimension(L×W×H): 545×430×165MM

RS1600 Software

RS1600 is a professional CobraNet device management software. Using the software, the audio signal transmission and processing of U88 processor can be managed. In addition, RS1600 software provides a lot of common audio processing function, such as: equalizer, compressor, limiter, electronic crossover, etc. Please refer the user’s manual of RS1600 Software for operation method.

Features of RS1600 Software

1. Network Equipment Automatic identification

2. Customized device name, device status indicators and management

3. Graphical routing configuration, matrix management, mixing, etc.

4. Graphical audio signal processing and adjusting.
