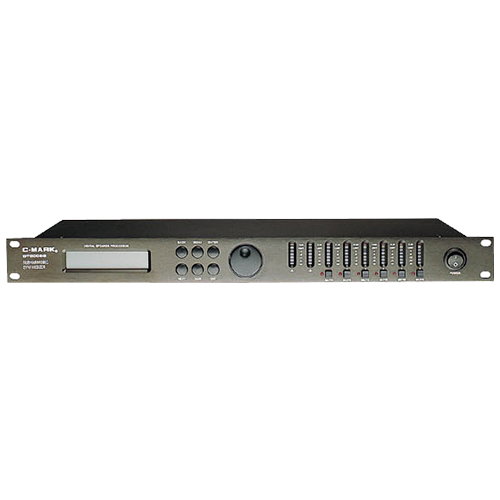

? DT2006S are based on DSP technology speaker processor high functional AKM A/D Ak5392
? 3pcs 24 bit high precision DSP
? Low distortion high dynamic frequency 20Hz~20kHz
? DT2006S is 2 input 6 output include 5 configure model 2×2way 2×3way 4way 5way 6way
? DT2006S is 2 input 4output include 4 configure model 2×2way 3way 4way 2way sub.
? Each model include input gain control each channel include separate crossover controller
? 5 band parameter equalizer delayer maxim delay 7ms
? Output gain and phase control parameter lock to avoid misoperation.
? Rs232 interface remote control include PC software.
? Each group parameter equalizer has 31 ISO frequency –12dB to +12dB gain.
? Each group Q value is from 0.5 to 10 and provide HI_shelf Lo_shelf select function.
? Separate limiter Attack Hold Decay and threshold parameter for flexible configuration.
? Each channel configure high pass,low pass 6dB 12dB 18dB 24dB 48dB Butterworth
? Linkwitz riley Bessel frequency response curve
? 8× 7 bit input/output precision digital LED meter.
? 2 ×20LCD backlit
